Horizontal Digital Video Comparator
The HDV300 and HDV400 X-Y stage travel are 12 x 6″ (300 x 150mm) and 16 x 6″ (400 x 150mm) respectively. Each HDV Digital Video Comparator features a 5-megapixel color video camera and a choice of zoom optics or seven telecentric lens options (US Patent No. 9,360,435) for ultra-low optical distortion field-of-view (FOV) measurements.
Features
-
Steel construction with hard anodized X Y stage.
-
Stage Travel (HDV300): 12 x 6″ (300 x 150mm).
-
Stage Travel (HDV400): 16 x 6″ (400 x 150mm).
-
21.3 x 5.1″ (540 x 130mm) workstage.
-
Maximum Load Capacity: 110lb (50kg).
-
Focus Travel: 2″ (51mm) of focus travel.
-
Helix angle adjustment with ±15° Vernier scale.
-
Manual X-Y and focus positioning via hand wheels.
-
Heidenhain glass scales for 0.00002″ (0.5µm) X and Y resolution.
-
LED illumination for surface and profile lighting.
-
5 megapixel color video camera (2448 x 2058 pixels).
-
Ultra-low distortion to 0.001% for telecentric FOV measurements.
-
64-bit Intel® Processor.
-
Windows® Professional operating system.
-
MetLogix™ M3 software with DXF/FOV importing and comparison.
-

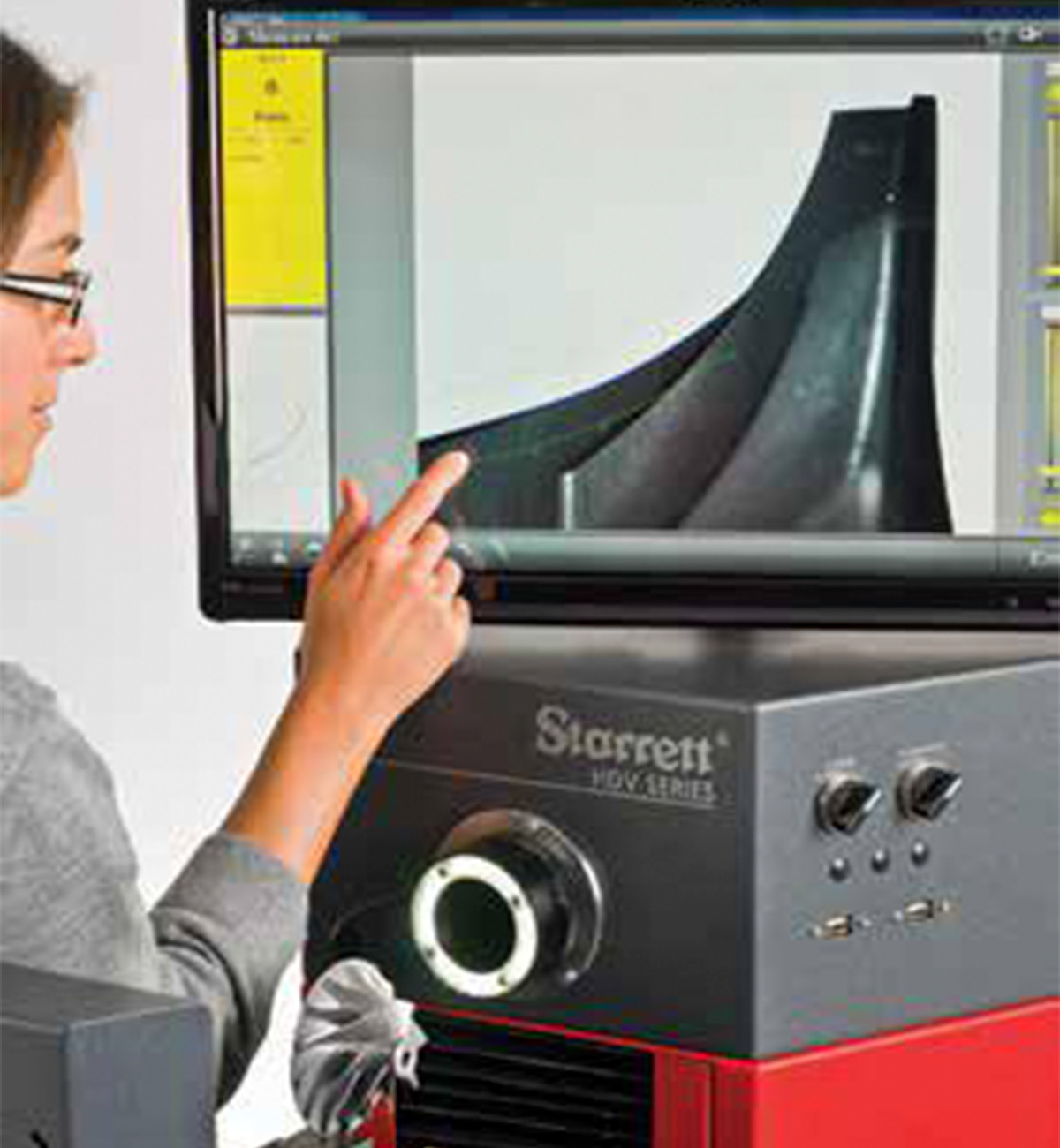

Parts displayed on 24″ (60 cm) touch-screen color monitor (1920 x 1080 pixels).
-
Bench top system.
-
X-Y Accuracy: E2 = 3.0µm + L/33.
Options
-
6 interchangeable telecentric lenses for field of view from 2.36 x 1.77″ to 0.09 x 0.07″, including .3x, .5x, .8x, 1.0x, 2.0x and 4.0x lens magnifications.
-
6.5:1 zoom optics – interchangeable.
-
.14x fixed telecentric lens (FOV size) non-interchangeable – utilizes black and white camera as standard.
-
MetLogix™ Profile Fitting software.
-
CNC controls.
-
23″ or 32″ purpose built cabinet stands.
-
Extensive line of accessories, work holding devices and calibration standards.
