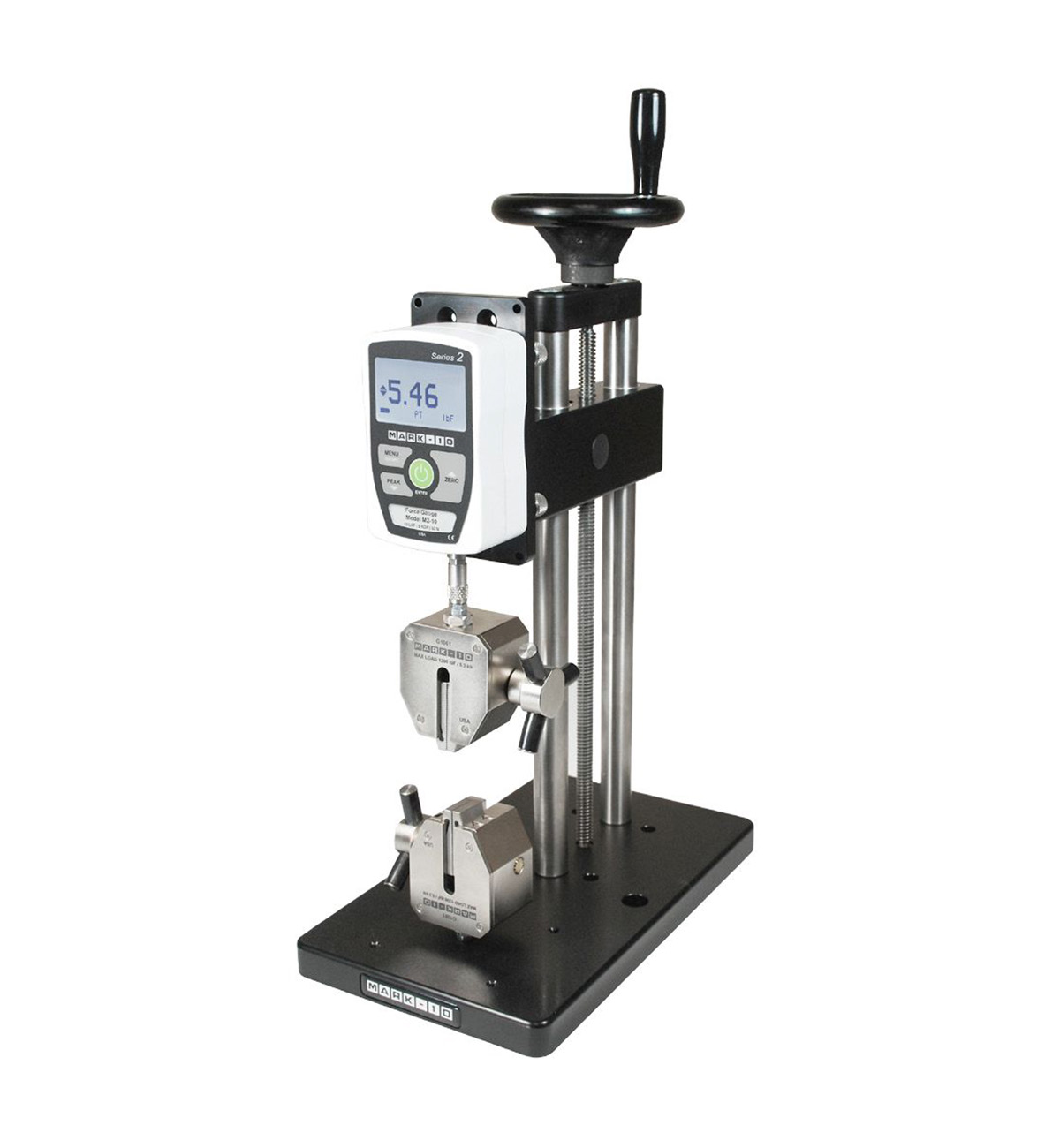

Series 2 digital force gauges are designed for basic tension and compression forcetesting applications up to 500 lbF (2,500 N). Peak tension and compression readingsare reliably captured via the gauges’ ±0.5% accuracy and 500 Hz sampling rate. Abacklit graphic LCD displays the current, peak tension, or peak compression reading.

The gauges are overload protected to 200% of capacity. An ergonomic, reversiblealuminum housing allows for hand held use or fixture mounting, rugged enough forapplications in both production and laboratory environments. Series 2 gauges are directlycompatible with Mark-10 test stands and grips.

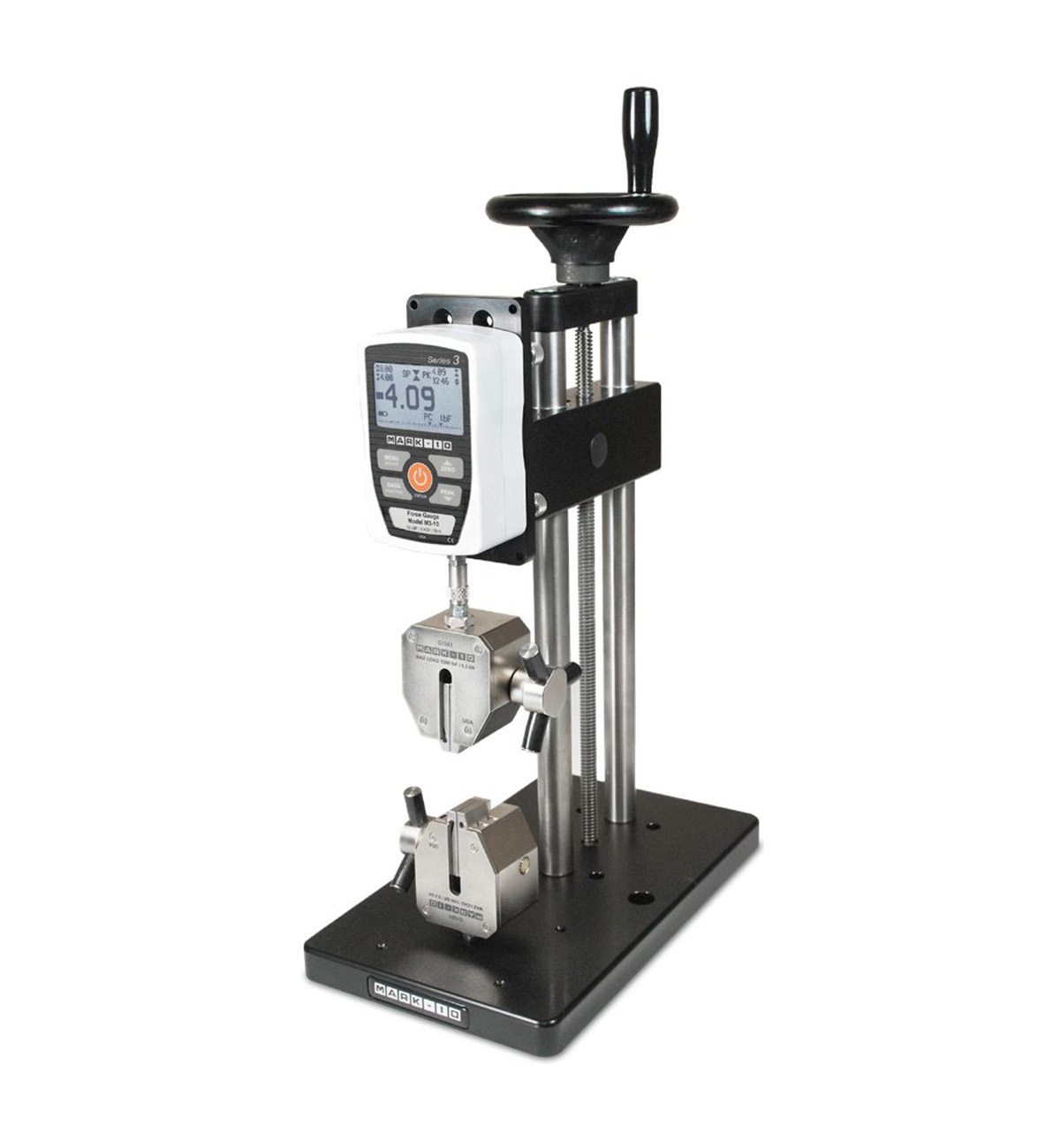

Series 3 digital force gauges are designed for tension and compression force testing in numerousapplications from 0.12 lbF to 500 lbF (0.5 N to 2500 N). The gauges feature a sampling rate of2,000 Hz, producing accurate results under a wide range of testconditions. A backlit graphic LCD displays large characters, and amenu is available to access the gauges’ features and configurableparameters. USB output is provided for data collection purposes.

Set point indicators are provided for pass-fail testing. The gaugesare overload protected to 200% of capacity, and an analog loadbar is shown on the display for graphical representation ofapplied force.

An ergonomic, reversible aluminum housing allows for handheld use or test stand mounting for moresophisticated testing requirements. Series 3digital force gauges are directly compatiblewith Mark-10 test stands, grips, and software.

Series 3 gauges include MESUR® Lite dataacquisition software, for tabulation of continuousor individual data points. One-click exportto Excel button easily allows for further datamanipulation.

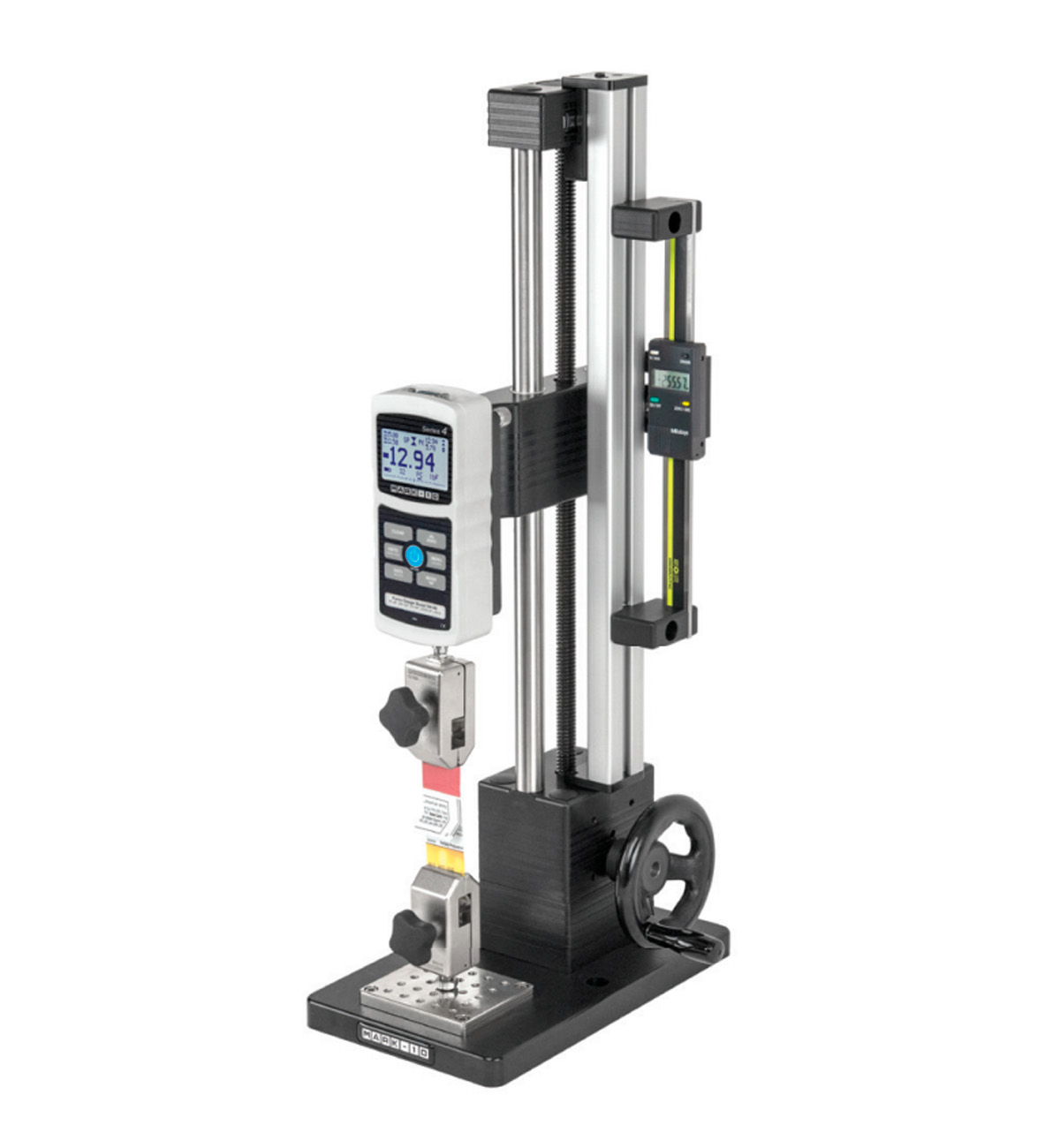

Series 4 digital force gauges are designed for tension and compression force testing in numerous applications across virtually every industry, with capacities from 0.12 lb to 500 lb (0.5 N to 2500 N). The gauges feature a sampling rate of 3,000 Hz, producing accurate results under a wide range of test conditions. Accuracy is ±0.2% of full scale, and resolution is 1/2000. A large, backlit graphics LCD displays large, legible characters, while the simple menu navigation allows for quick access to the gauges’ many features and configurable parameters. Data can be transferred to a PC or data collectors via USB, RS-232, Mitutoyo (Digimatic), or analog outputs.

On-board data memory for up to 50 readings is included, as are statistical calculations with output to a PC. Integrated set points with indicators and outputs are ideal for pass-fail testing and for triggering external devices such as an alarm, relay, or test stand. The gauges are overload protected to 200% of capacity, and an analog load bar is shown on the display for graphical representation of applied force.

An ergonomic, reversible aluminum design allows for hand held use or test stand mounting for more sophisticated testing requirements. Series 4 digital force gauges are directly compatible with Mark-10 test stands, grips, and software.

Series 4 gauges include MESUR® Lite data acquisition software. MESUR® Lite tabulates continuous or single point data from Series 5 and 4 gauges. Data saved in the gauge’s memory can also be downloaded in bulk. One-click export to Excel button easily allows for further data manipulation.

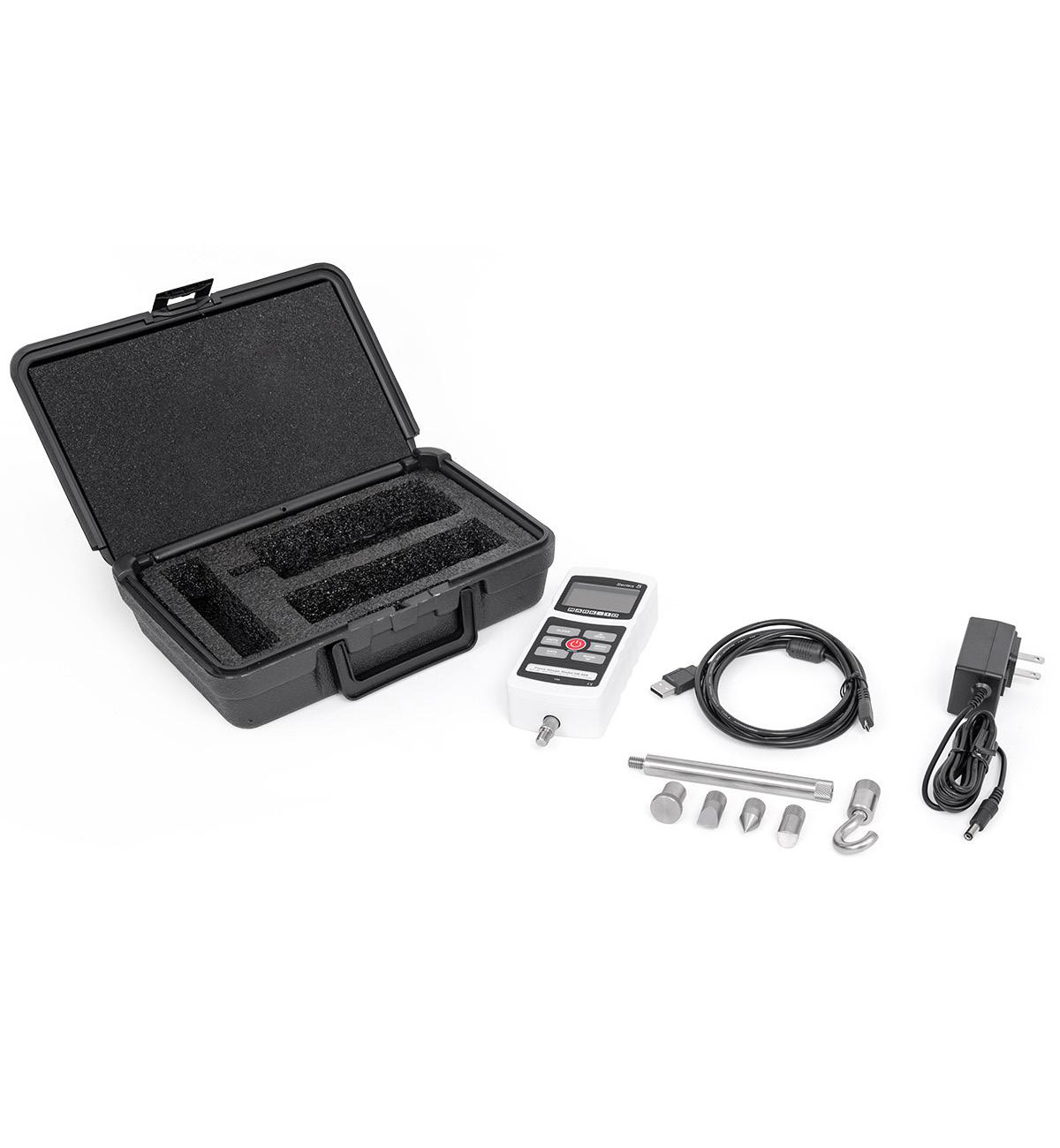

Series 5 advanced digital force gauges are designed for tension andcompression force testing in numerous applications across virtuallyevery industry, with capacities from 0.12 lb to 500 lb (0.5 N to 2500N). The gauges feature an industry-leading sampling rate of 7,000 Hz,producing accurate results even for quick-action tests. A large, backlitgraphics LCD displays large, legible characters, while the simplemenu navigation allows for quick access to the gauges’ many featuresand configurable parameters. Data can be transferred to a PC or datacollectors via USB, RS-232, Mitutoyo (Digimatic), or analog outputs.

On-board data memory for up to 1,000 readings is included, as arestatistical calculations with output to a PC. Integrated set points withindicators and outputs are ideal for pass-fail testing and for triggeringexternal devices such as an alarm, relay, or test stand. The gauges areoverload protected to 200% of capacity, and an analog load bar is shownon the display for graphical representation of applied force.

The Series 5’s averaging mode addresses the need to record theaverage force over time, useful in applications such as peel testing,while external trigger mode makes switch activation testing simple andaccurate. An ergonomic, reversible aluminum design allows for hand held use or teststand mounting for more sophisticated testing requirements. Series 5 force gaugesare directly compatible with Mark-10 test stands, grips, and software.

Series 5 gauges include MESUR® Lite data acquisition software. MESUR® Lite tabulatescontinuous or single point data from Series 5 gauges. Data saved in the gauge’s memorycan also be downloaded in bulk. One-click export to Excel easily allows for further data manipulation.

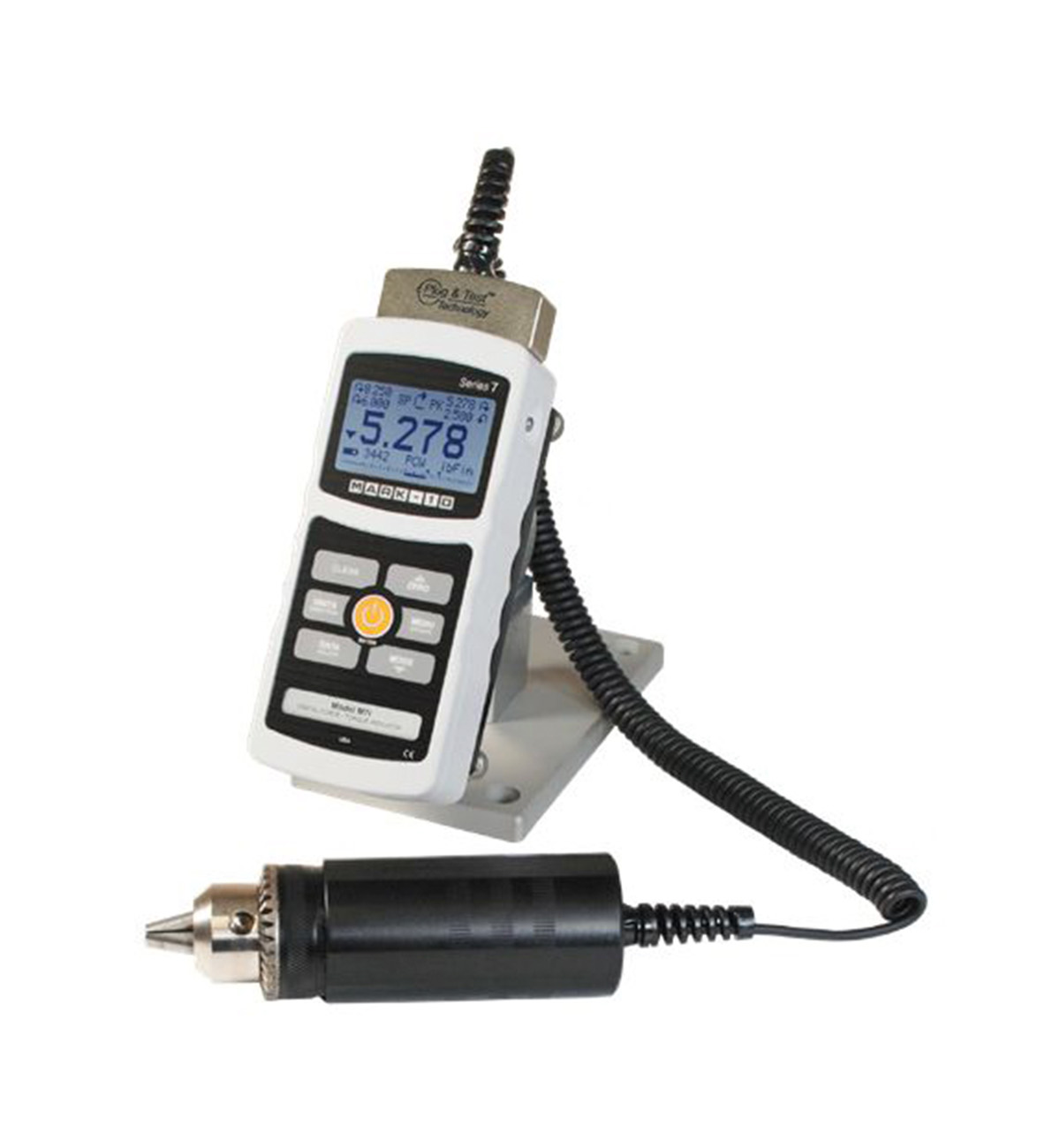

The M7I professional digital force / torque indicator is designed to work with a wide range of Mark-10 remoteforce and torque sensors (see page 4). With exclusive Plug & Test® technology, all calibration and configurationdata is saved within the sensor’s smart connector, not the indicator, allowing for true interchangeability. Inaddition, all sensors are fully compatible with other Mark-10 indicators.

The M7I features an industry-leading sampling rate of 14,000 Hz, producing reliable results for extremelyquick-action tests. In addition to the M5I indicator’s functions, the M7I features high speed continuous datacapture and storage, with memory for up to 5,000 readings, at an acquisition rate of up to 14,000 Hz. The M7Ialso features programmable footswitch sequencing, break detection, and 1st / 2nd peak detection. Coefficient offriction unit of measurement and a user-defined unit of measurement add flexibility for specialized applications.For productivity enhancement, the indicator also features automatic dataoutput, data storage, and zeroing functionsupon the completion of break detection,averaging, external trigger, and 1st / 2ndpeak detection.

The M7I interfaces with Mark-10 teststands to permit functions such as breaktesting, dynamic load holding, PC controlcapability, and more. The included MESUR®Lite data acquisition software tabulatescontinuous or single point data. Datasaved in the indicator’s memory can alsobe downloaded in bulk. One-click exportto Excel easily allows for further datamanipulation.

Microscopes and vision systems represent advanced optical solutions that allow for detailed inspections, dimensional analysis, and automated visual control with high levels of precision and reliability. These equipment are essential in environments where quality, detail, and visual information traceability are critical factors.

At Beamar, we offer a broad portfolio with different brands, models, and configurations, enabling us to adapt to the requirements of each client, from educational and research applications to highly specialized industrial processes.

The Chatillon MT Series manual test stand is a flexible, easy-to-use solution for force measurement. It comes in two versions: the MT150 and the MT500.

This manual test stand is ideal for tensile testing, compression testing, peel, and flexural testing.

The MT Series manual test stands are often used with the DF Series digital force gauges to check the force necessary to depress a button, or with the LG/DG mechanical gauge to perform low range pull tests at the end of a production line where caps are placed on spray bottles. These test stands are commonly used to test the force in the Packaging Industry as for folding cardboard boxes into shape.

The MT Series test stand comes with:

• a hook

• compression plate

• threaded and eye end type adapters

Gauge mounting hardware is optiona

Particle size analyzers are specialized equipment for characterizing the range and distribution of solid or suspended particles, a critical variable that directly influences the physical, chemical, and functional properties of a product. These instruments allow for understanding how particle size and shape affect key parameters such as reactivity, solubility, stability, and the final material’s quality.

At Beamar, we offer various brands and analysis technologies that adapt to different applications, from scientific research to industrial quality control processes.

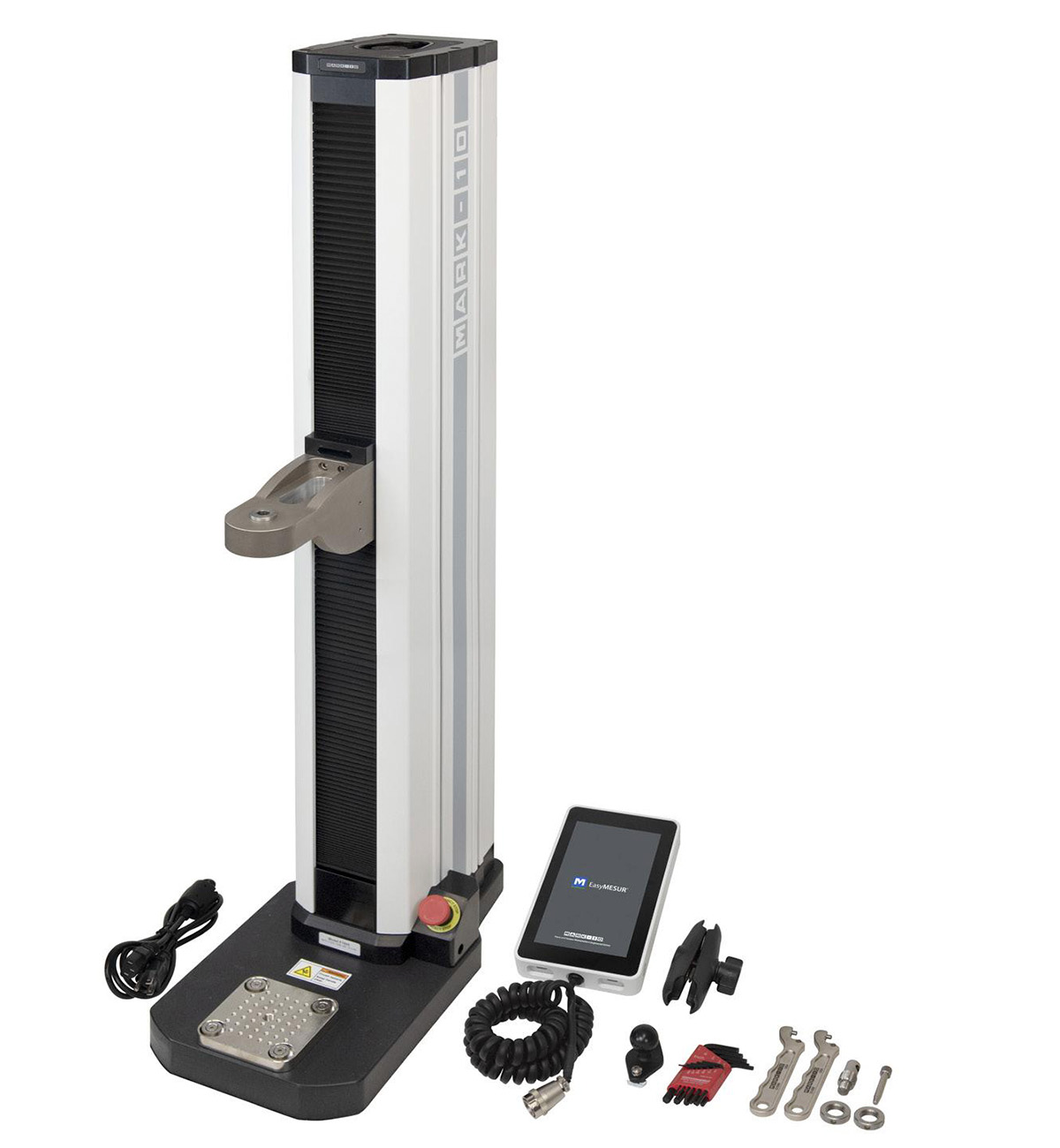

Series F Tension / Compression Test Frames

Series F Tension / Compression Test Frames are engineered for force testing applications up to 1,500 lbf (6.7 kN). Select from a broad range of force sensor capacities and an expansive array of grips and fixtures.

Set up tests, view results, and export data via the integrated EasyMESUR® control panel. Satisfy various test methods through an easy-to-use interface, with a menu of available optional functions and function packages. The system can be tailored to your unique needs and budget, and is easily upgradeable in the field.

Virtually limitless applications
From food packaging to electronics, from consumer products to aerospace manufacturing, Mark-10 force test frames are at home in laboratory and production environments in virtually every industry worldwide.

Virtually limitless applications
From food packaging to electronics, from consumer products to aerospace manufacturing, Mark-10 force test frames are at home in laboratory and production environments in virtually every industry worldwide.

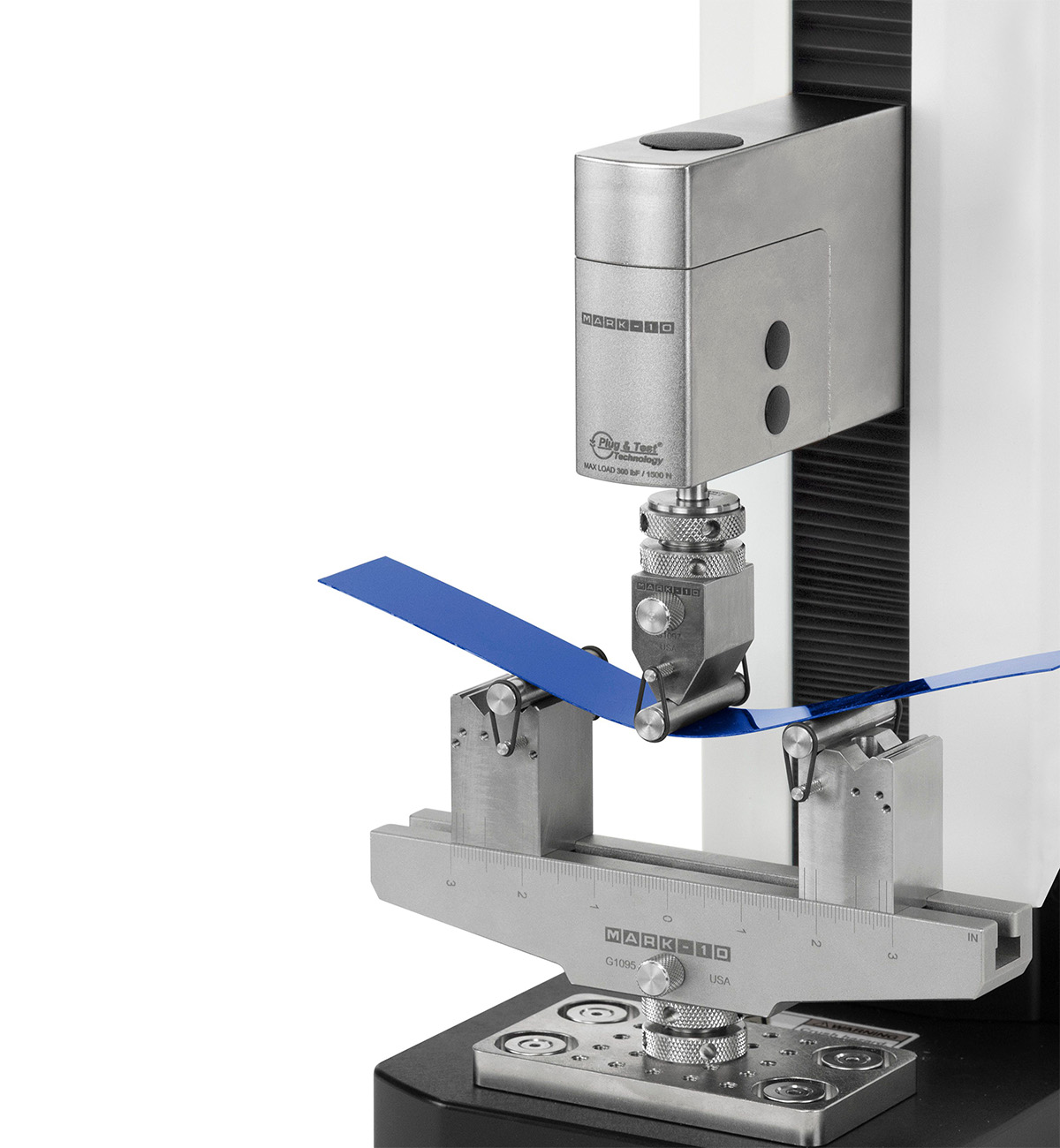

Force Measurement Re-imagined

Series F Tension / Compression Test Frames are engineered for force testing applications up to 1,500 lbf (6.7 kN). Select from a broad range of force sensor capacities and an expansive array of grips and fixtures.

Set up tests, record data, and analyze data via IntelliMESUR® software. From basic tests to multi-step sequencing, IntelliMESUR® is fully integrated with Series F systems. Select from a pre-configured tablet control panel or standalone software for your own Windows device.

Virtually limitless applications
From food packaging to electronics, from consumer products to aerospace manufacturing, Mark-10 force test frames are at home in laboratory and production environments in virtually every industry worldwide.

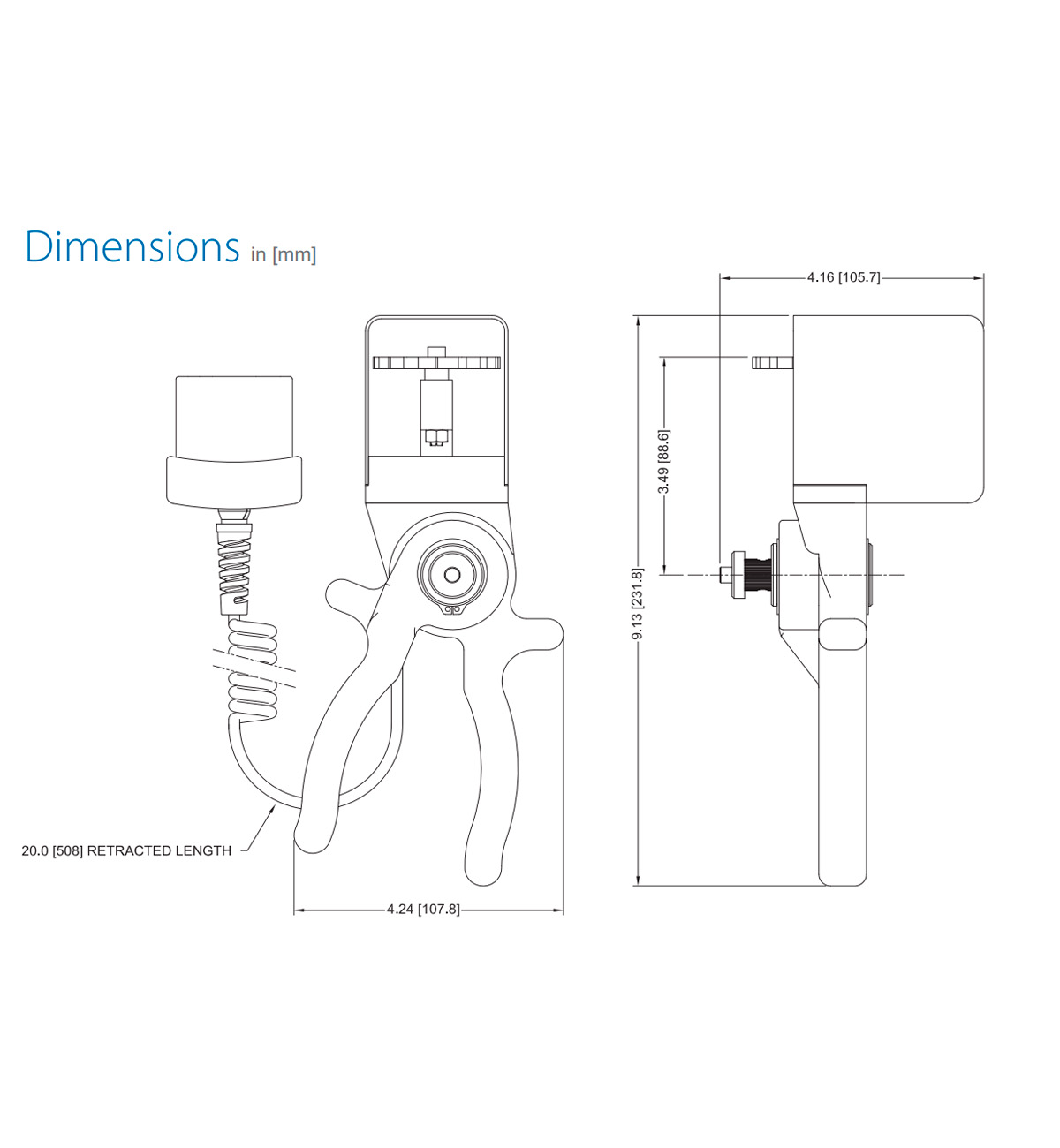

The MR06-200 wire crimp pull sensor is a hand-operated solution for measuring wire crimp pull-off forces. The ergonomic handles and convenient tensioning mechanism make field measurements a breeze for applications up to 200 lbf (1,000 N). Squeeze the handles together to increase tension on the sample until a break occurs. The peak force is recorded by the indicator.

A rotating turret with slots of multiple sizes accommodates a wide range of wire diameters, up to 0.25 in. (6.4 mm).

A combined certificate for the sensor and an indicator is available at time of order, part no. CERT-SI.

Equipment that allows for evaluating the sharpness of edges or blades in metal parts, tools, and knives.

• Ensure safety and functionality in products requiring precise edges.
• Portable and laboratory models for quick and reliable testing.
• Used in cutting industries, tools, metal packaging, and plastics.
